3M Canada Company
3M™ Motor Lead Pigtail Splice Kit 5303
3M™ Motor Lead Pigtail Splice Kit 5303
Mfr. Model #
7000005807
|Item #
11337616
|UNSPSC #
00054007122654
Your price
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.

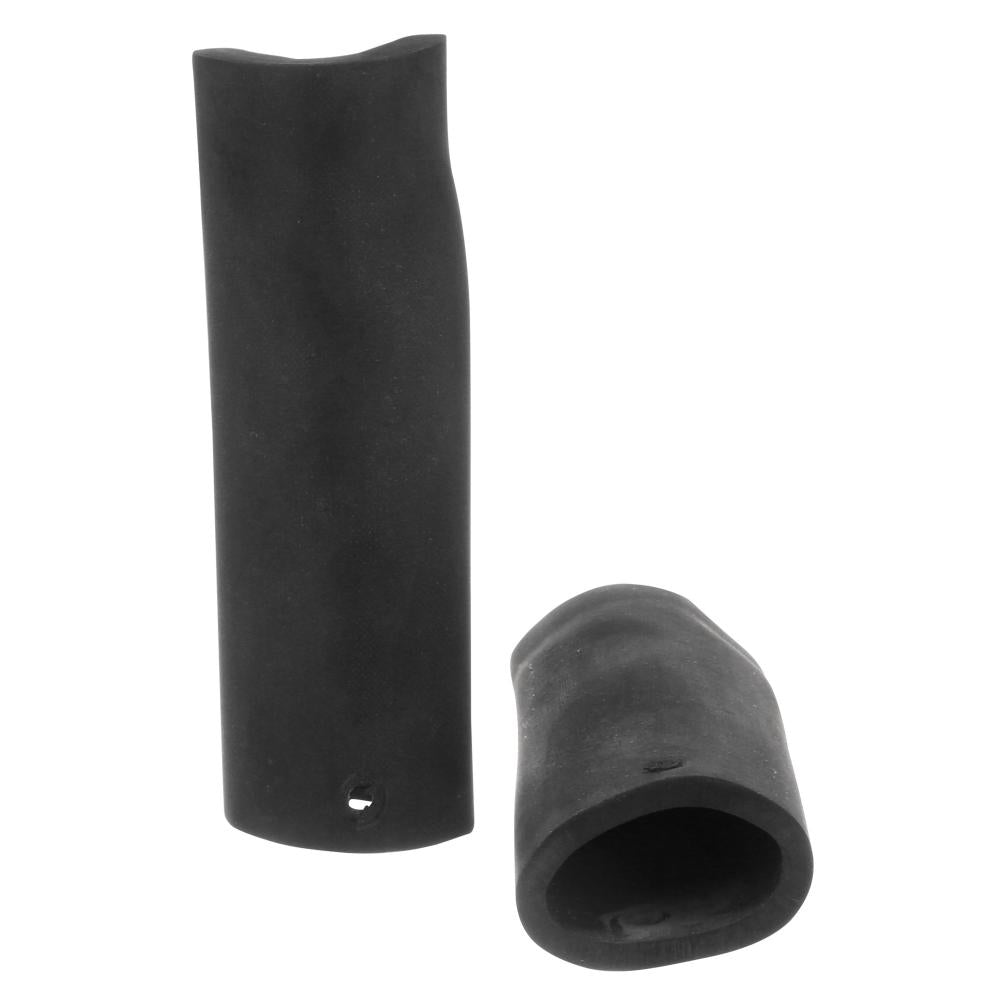

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).3M Motor Lead Pigtail Splice Kits are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splices main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. 3M Scotchlok Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used (not included). Each kit includes: 3 pigtail lug covers, 3 mastic sealing strips, 3 locking pins, 3 tubes of silicone grease and an instruction sheet.
